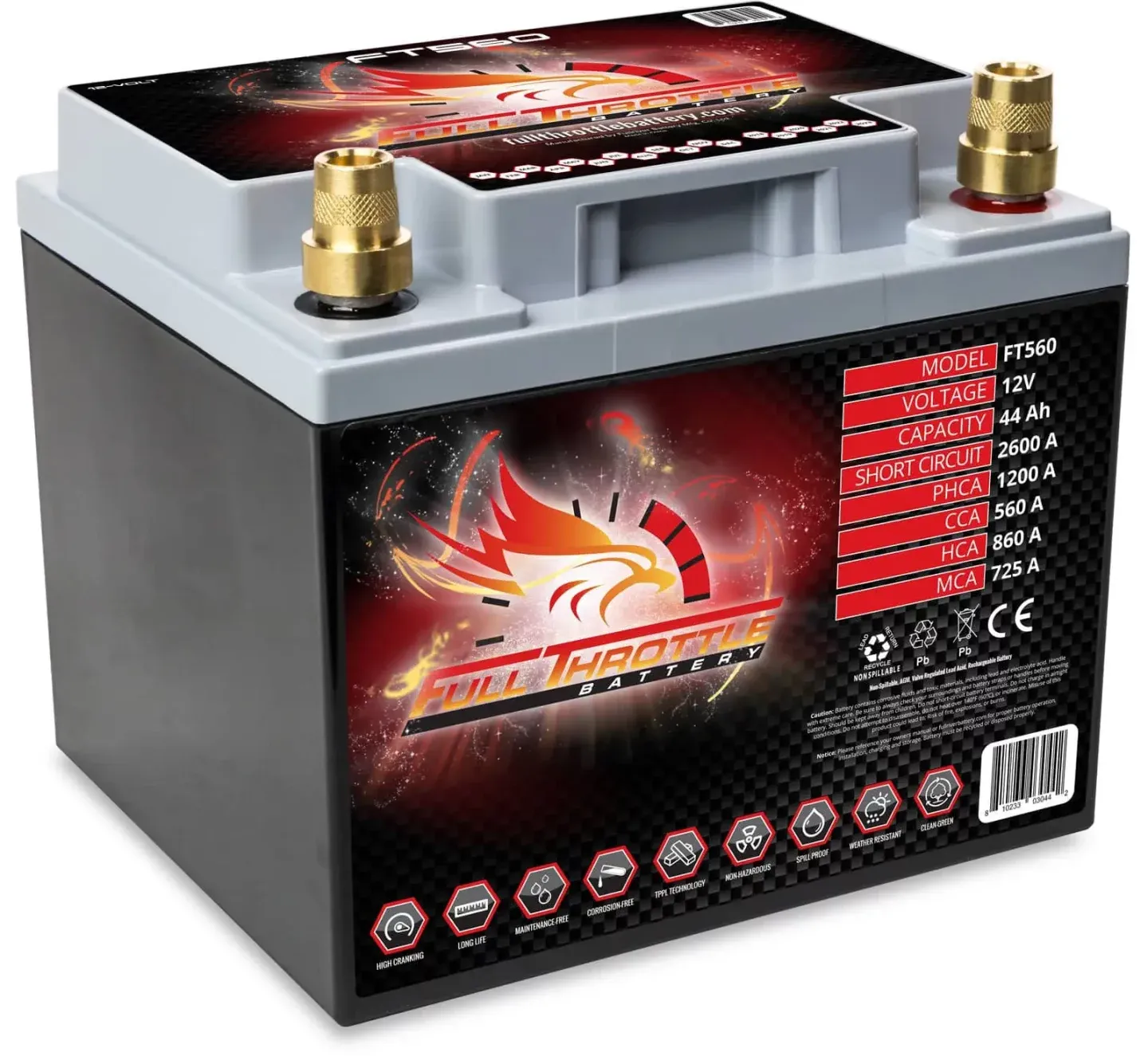

Full Throttle FT560 AGM Battery

These Full Throttle batteries are High performance batteries made for tough conditions and will last forever. We highly recommend these batteries to power all of your lights and accessories.

Cycling Capacity 20 hour rate 44 Amp Hours Reserve Capacity @ 25 Amps 80 minutes @ 75 Amps 14 minutes Mechanical Specifications Group Size Terminal Type M8 Total Height 6.69" (170 mm) Height 6.69" (170 mm) Width 6.54" (166 mm) Length 7.80" (198 mm) Weight 33.3 lbs (15.1 kg) Case Type ABS Plastic - Flame Res Rating UL94-HB Discharge Table (Constant Current) Time Amps Rate 20 hr 2.2 0.05 CA 10 hr 4 0.1 CA 8 hr 4.8 0.13 CA 5 hr 7 0.25 CA 3 hr 11.3 0.33 CA 2 hr 14.7 0.5 CA 1 hr 27.2 1 CA Electrical Specifications Nominal Voltage 12 Volt Capacity @ 100 hour rate 48 AH Capacity @ 20 hour rate 44 AH Capacity @ 10 hour rate 40 AH Capacity @ 5 hour rate 35 AH CCA 560 CA or MCA 725 Short Circuit Current 2600 Amps Internal Resistance 2.7m Ω Charge Voltages Battery Voltages Charge Stage 12V 24V 36V 48V Bulk 14.7 V 29.4 V 44.1 V 58.8 V Absorption 14.7 V 29.4 V 44.1 V 58.8 V Float 13.6 V 27.2 V 40.8 V 54.6 V TC Factor: -4mV/°C/cell Temperature Range Specifications Condition Recommended Maximum Storage -15°C to 50°C -40°C to 71°C Operation -15°C to 40°C -40°C to 71°C Charge with TC -15°C to 50°C -40°C to 71°C Charge without TC 0°C to 40°C -15°C to 50°C
